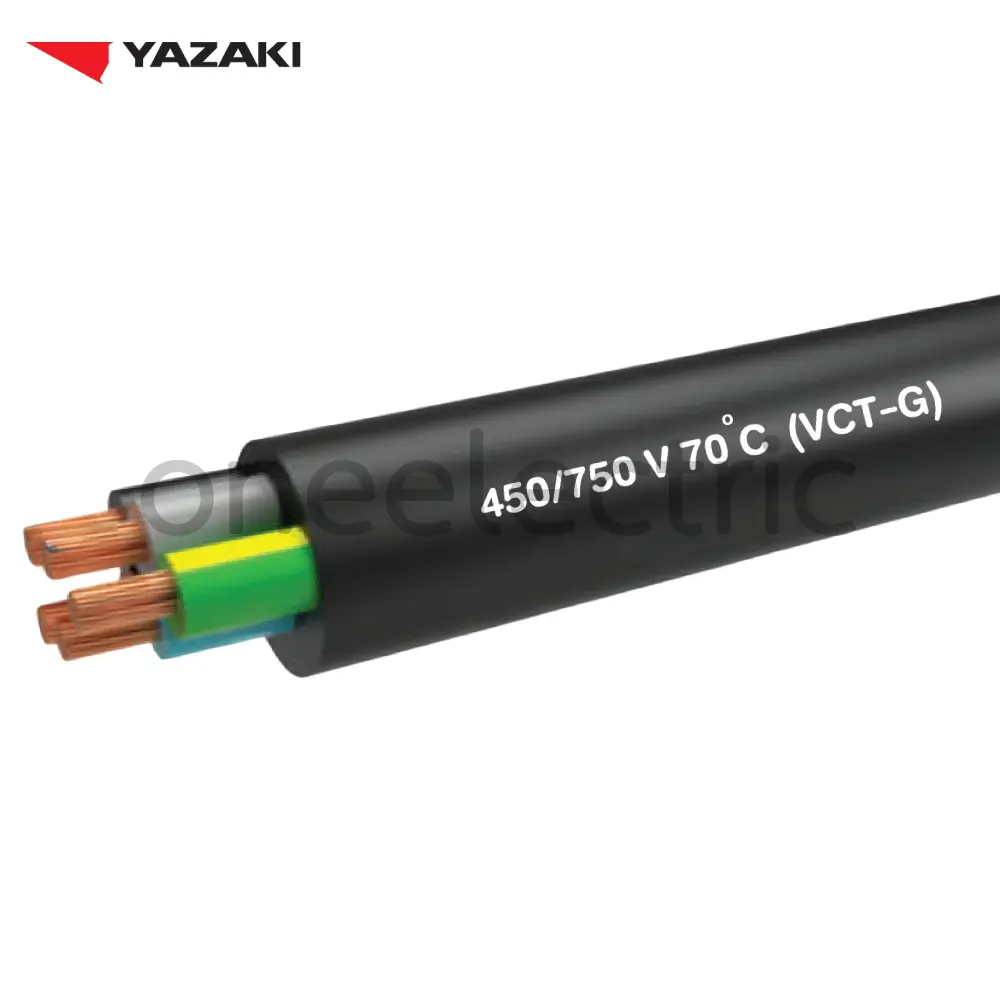

สายไฟ VCT-G 4x4/4 YAZAKI ยาซากิ

รายละเอียดสินค้า

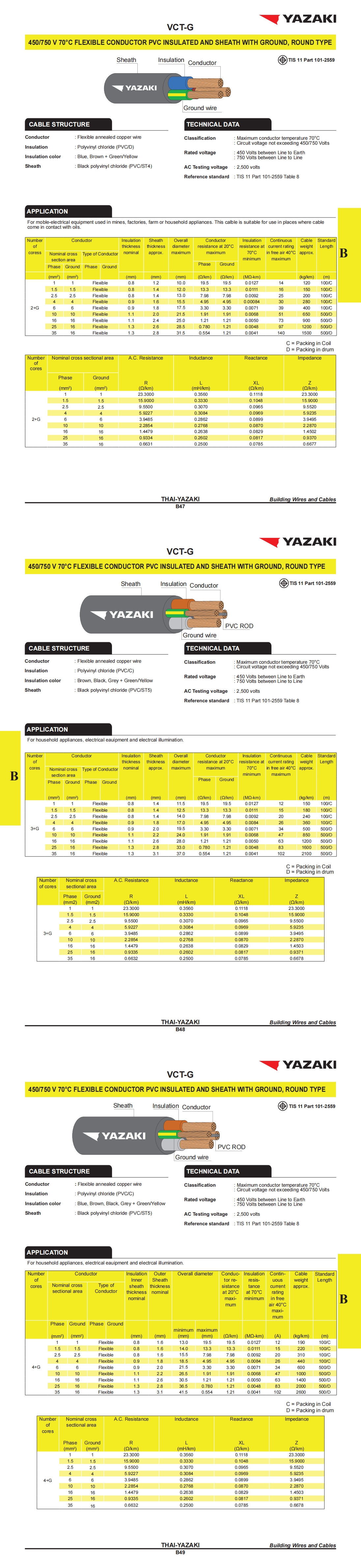

สายไฟ VCT-G YAZAKI ยาซากิ
VCT-G 450/750 V 70°C FLEXIBLE CONDUCTOR PVC INSULATED
AND SHEATH WITH GROUND, ROUND TYPE

CABLE STRUCTURE
Conductor : Flexible annealed copper wire
Insulation : Polyvinyl chloride (PVC/C)
Insulation Color :
- 2+G Cores Blue, Brown + Green/Yellow
- 3+G Cores Brown, Black, Grey + Green/Yellow
- 4+G Cores Blue, Brown, Black, Grey + Green/Yellow
Sheath : Black polyvinyl chloride (PVC/ST5)

TECHNICAL DATA
Classification :
- Maximum conductor temperature 70°C
- Circuit voltage not exceeding 450/750 Volts
Rated voltage
- 450 Volts between Line to Earth
- 750 Volts between Line to Line
AC Testing voltage : 2,500 volts
Reference standard : TIS 11 Part 101-2559 Table 8

APPLICATION
For household appliances, electrical eauipment and electrcal illumination
